General - Type - Switching power supply
- Technology - EuP compliant
- Colour - black
Electrical values - Output 9-24 V DC
- Current 1000-1500
- Performance 3,6 W
- Input voltage 100-240 VAC
- Stabilized 1x
Interfaces - Connection - Adapter set, 6-fold
Measures - Length 88 mm
- Width 51 mm
- Height 42 mm
Output voltage: 9,0 / 12,0 / 13,5 / 15,0 / 18,0 / 20,0 / 24 VDC
Power: 24 W
Output current :
-
- 1.5A (9/12/13.5/15VDC)
- 1.2A (18/20VDC)
- 1A (24VDC)

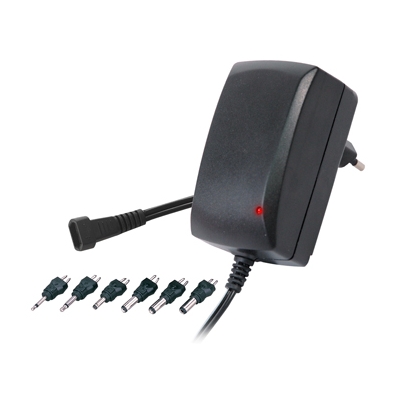

These new, compact eco-friendly power supplies meet the international CEC and MEPS standards, as well as the eco-design directive "EuP" of the EU.
The aim of these standards is saving energy, particularly through the reduction of standby losses, and of CO ² emissions.
Through the high energy efficiency of these switched power supplies, energy savings of up to 98% compared to traditional analog power supplies can be achieved.
Wide-range input voltage: 100-240 VAC 50/60 Hz
Output voltage is selected by a turn switch underneath the power supply, which largely eliminates handling errors during operation.
The operation is indicated by an LED.
